What happens when you create a MySQL Document Store

tháng 4 25, 2016

The MySQL Document Store introduced with version 5.7.12 allows developers to create document collections without have to know Structured Query Language. The new feature also comes with a new set of terminology. So let us create a collection and see what it in it (basically creating a table for us SQL speakin' old timers).

So start the mysqlsh program, connect to the server, change to the world-x schema (database) switch to Python mode, a create a collection (table).

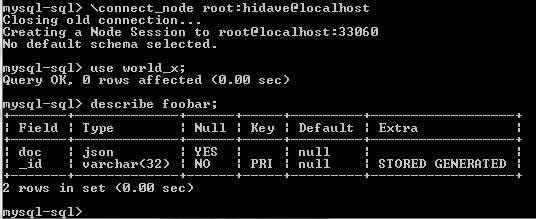

What did the server do for us? Switching to SQL mode, we can use describe to see what the server has done for us.

We have a two column table. The first is named doc and is used to store JSON. And there is also a column named _id and please notice this column is notated as STORED GENERATED.

The generated column extracts values from a JSON document and materializes that information into a new column that then can be indexed. But what did the system extract for us to create this new column?

Lets use SHOW CREATE TABLE to find out.


mysql-sql> SHOW CREATE TABLE foobar;
+--------+----------------------------------------------------------------------
--------------------------------------------------------------------------------
----------------------------------------------------------------------+
| Table  | Create Table

                                                                      |
+--------+----------------------------------------------------------------------
--------------------------------------------------------------------------------
----------------------------------------------------------------------+
| foobar | CREATE TABLE `foobar` (
  `doc` json DEFAULT NULL,
  `_id` varchar(32) GENERATED ALWAYS AS (json_unquote(json_extract(`doc`,'$._id'
))) STORED NOT NULL,
  UNIQUE KEY `_id` (`_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 |
+--------+----------------------------------------------------------------------
--------------------------------------------------------------------------------
----------------------------------------------------------------------+
1 row in set (0.00 sec)

mysql-sql>

So the 5.7.12 document store is creating an index for us on a field named _id in our JSON document. Hmm, what if I do not have an _id field in my data. So I added two records ("Name" : "Dave" and "Name" : "Jack") into my new collection and then took a peek.


mysql> select * from foobar;
+-------------------------------------------------------------+-----------------
-----------------+
| doc                                                         | _id
                 |
+-------------------------------------------------------------+-----------------
-----------------+
| {"_id": "819a19383d9fd111901100059a3c7a00", "Name": "Dave"} | 819a19383d9fd111
901100059a3c7a00 |
| {"_id": "d639274c3d9fd111901100059a3c7a00", "Name": "Jack"} | d639274c3d9fd111
901100059a3c7a00 |
+-------------------------------------------------------------+-----------------
-----------------+
2 rows in set (0.00 sec)

mysql>

But what if i do have a _id of my own?

The system picked up the _id for the Dexter record. Remember that the index on the _id field is marked UNIQUE which means you can not reuse that number.

So we know the document store wants is creating an unique identification number (that we can also use).

Update: The client generates the identification number, the server can not due to possible conflicts in future sharding projects.
